Characteristics :

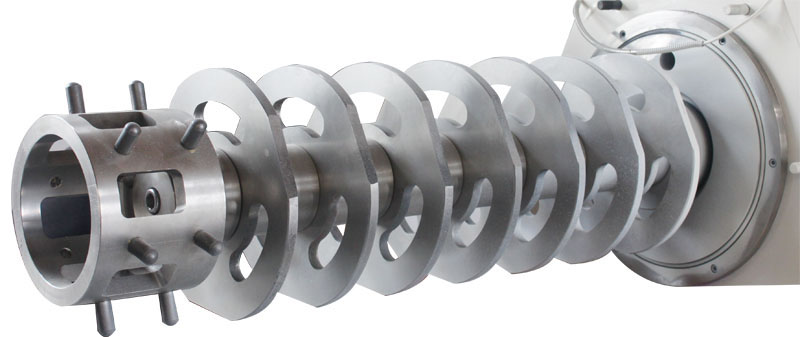

High flux--Germany technology:static centrifugal discharging devices,large discharge area with high output.
Adopts double mechanical seal,the lubricanting liquid dissolved with material, safe and reliable.
Grinding area made of special anti-wearing alloy material ensures long service life.
Cooling efficiency:the double helix segmented more advantageous to the exchange energy .Cooling effciency is 2 times than ordinary types.
ntelligent double mechanical seals:the technology of Germany mechanical,the imported-fluorine sealing rings can be anti-eroded different solvents.
Grinding efficiency than ordinary type:increased by more than 30%,the distributor can rapidly improving dispersion effciency.The grinding media can choose superfine grinding medium.
Application area :
Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical,etc.
Technical specification:
型号 参数 | 研磨筒容积L | 电机功率Kw | 加工批量L | 冷却水用量L/h | 最大线速度m/s |
DF5 | 5 | 5.5 | 50~200 | 500 | 10 |
DF30 | 30 | 22 | 200~1000 | 1000 | 10 |
DF50 | 50 | 30 | 200~2000 | 1500 | 10 |
DF100 | 100 | 55 | 500~3000 | 2500 | 11 |
DF260 | 260 | 110 | 1000~8000 | 5000 | 12 |
