MS High speed dispersion machine

首页 > Product Center > Dispersion machine > MS High speed dispersion machine > MS High speed dispersion machine

left

MS High speed dispersion machine

Product Categories： MS High speed dispersion machine

Principle

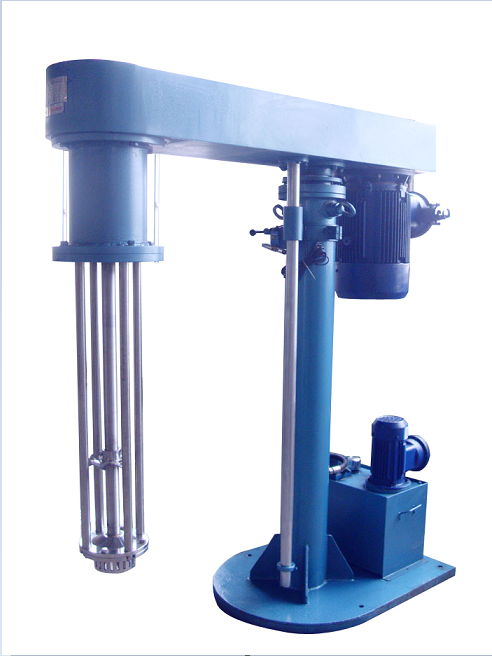

The series of MS high speed mixers are suitable for producing paint,ink,coating,dyestuff,paper marking and so on in chemical industry.The mixers are used for wet dispersing and mixing liquid-solid material. Non-grade speed adjustment by frequency converters, hydraulic elevating,working steadily.use and maintenance expendiently.

Main technical data

参数/型号 Type/Parameter	功率 (kw) Power	转速 (rpm) Speed	分散盘直径（mm） Disc dia	升降行程(mm) Lifting height	泵功率（kw） Pump Power	处理量（l） Capacity	重量（kg） Weight	外形尺寸（mm） Dimensions
MS1.5/2.2	1.5/2.2	0~1450	150	600	0.55	50~100	120	1400 940 350
MS4/5.5	4/5.5	0~1450	200	800	0.55	100~200	400	1700 1300 600
MS7.5/11/15	7.5/11/15	0~1450	250	900	0.55	400~600	800	1750 1800 900
MS8.5/22/30/37	18.5/22/30/37	0~1450	350/400	1200	0.75	600~2000	1700	1700 2200 1100
MS45/55	45/55	0~1200	450	1600	1.1	1000~2500	2100	2600 2700 1400
MS75/90	75/90	0~1200	600	1600	2.2	5000	2600	2700 3000 1600
MS110/132	110/132	0~1200	610	2000	4	10000	4500	3800 3800 1800

Shanghai Confucianism, better mechanical and electrical technology co., Ltd.
